Product Specifications
Frameset
Frame
6061 Alloy with Reinforcing Gussets
Fork
1-1/8" Chromoly, Threadless, Straight Legs, (DISC COMPATIBLE)

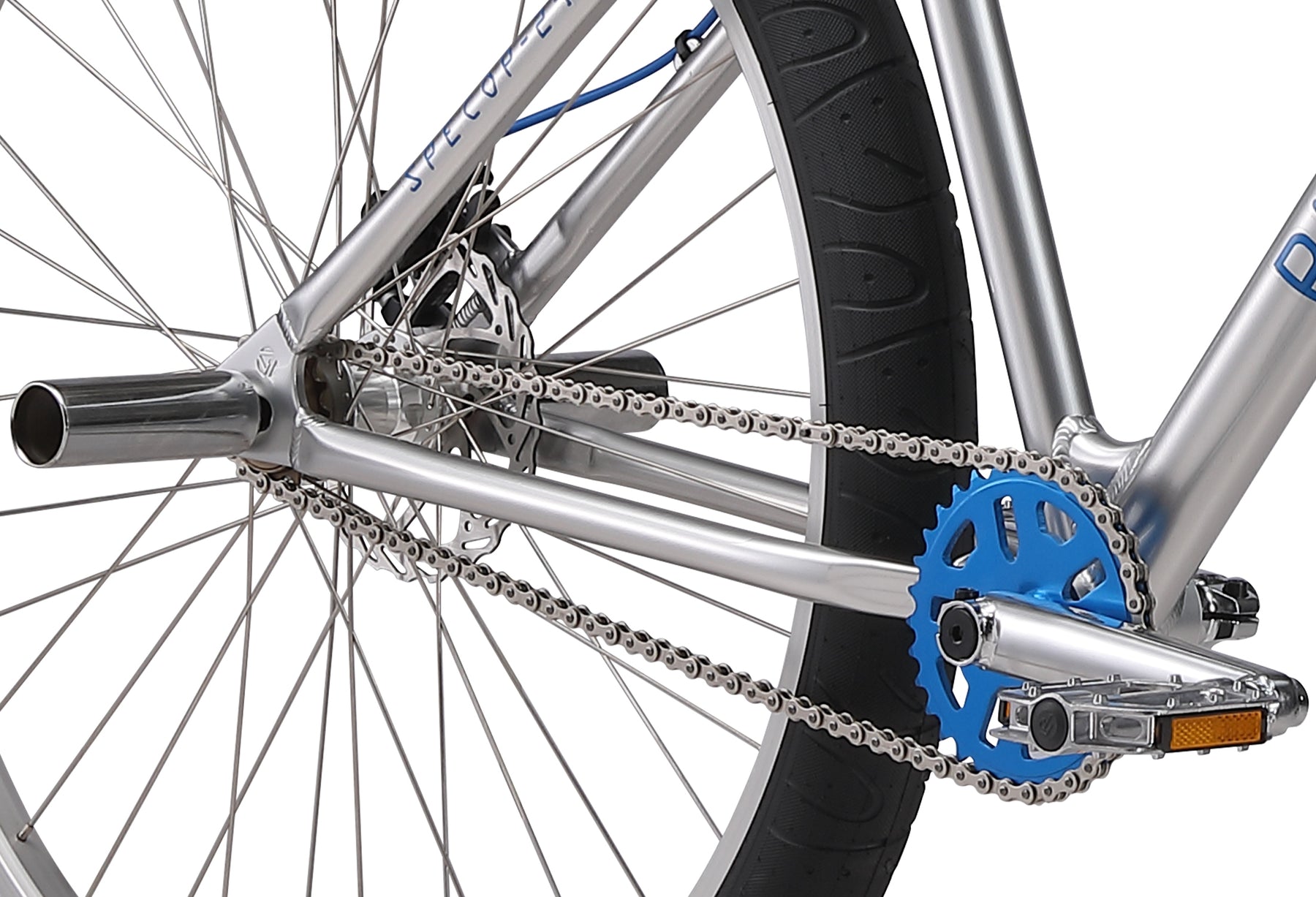

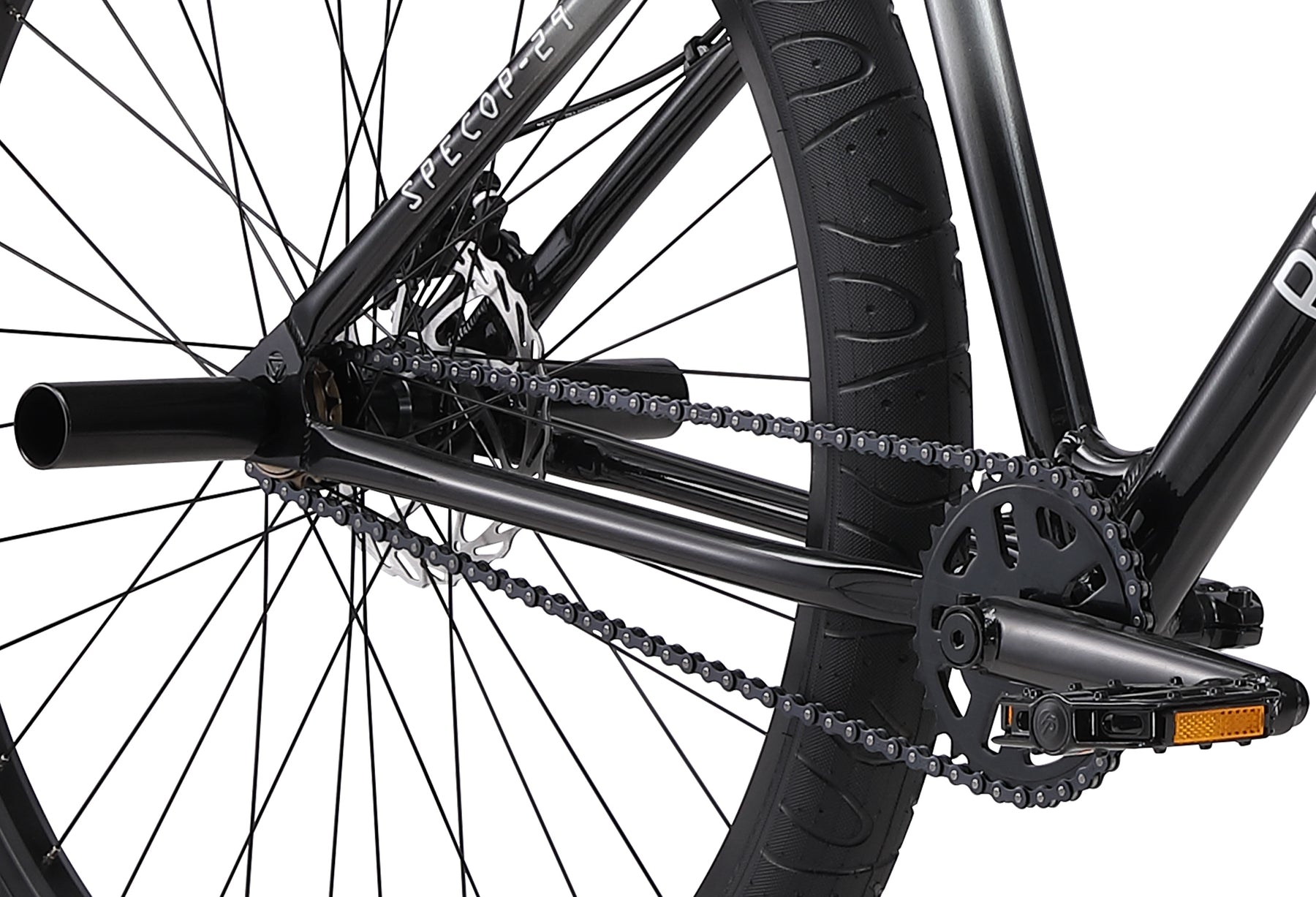

Drivetrain
Crankset
3-Piece Cr-Mo Tubular Arms, 175mm
Chainring
Alloy, 33T x 1/2" x 1/8"
Bottom Bracket
Sealed Cartridge Bearings, 41.2 O.D. x 19mm I.D. for MID BB Shell
BB Spindle
8T-19mm x 150mm Cr-Mo Spindle
Freewheel
DNP 16T x 1/2" x 1/8" Freewheel
Chain
K.M.C. B1H, 1/2" x 1/8", 98L
Pedals
FP 922, Alloy W/ Steel Spindle, 9/16"
Brakes
Rear Brake
Mechanical Disc with 160mm Rotor
Brake Lever
Radius, 2.5 Finger Alloy
Components

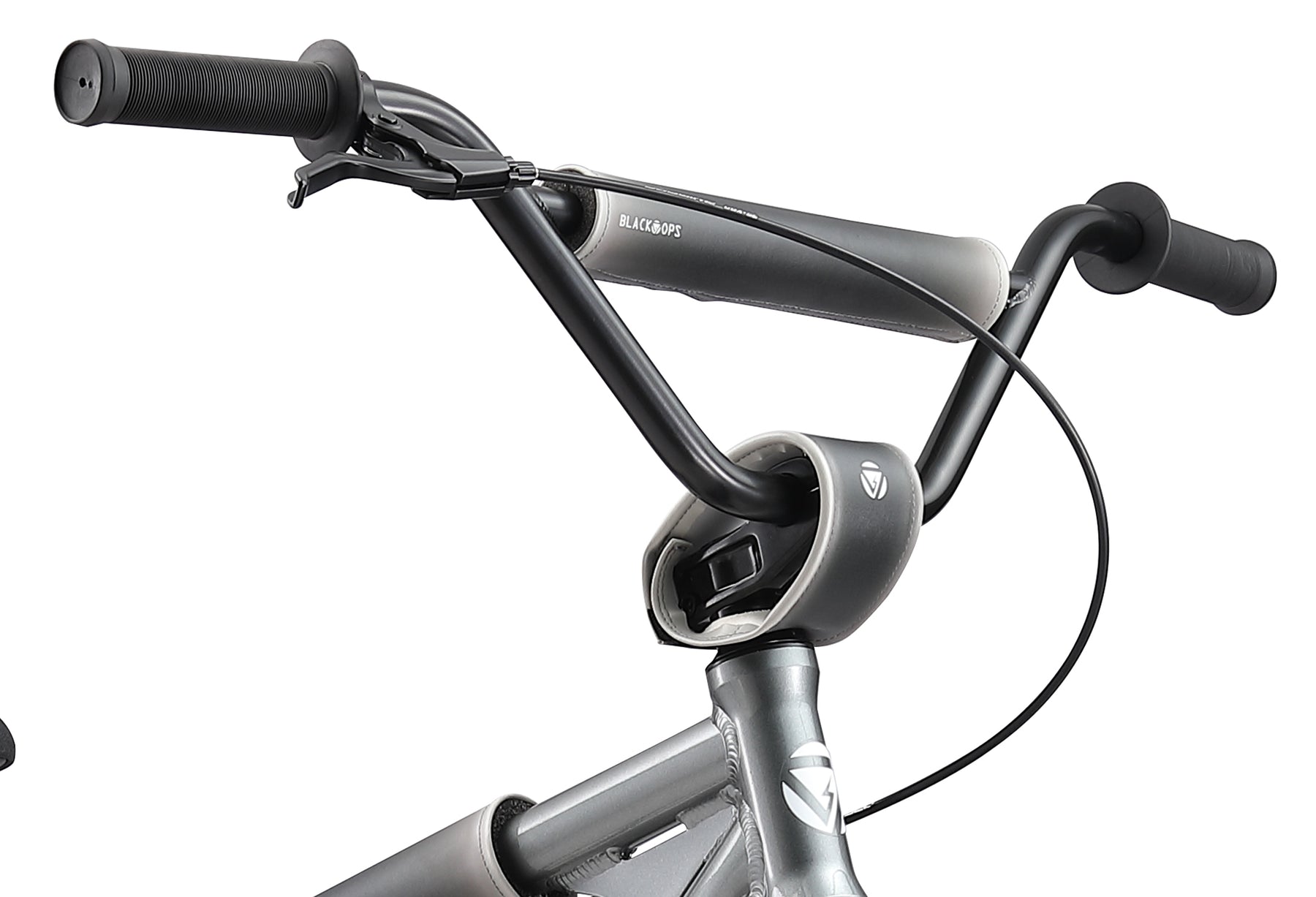

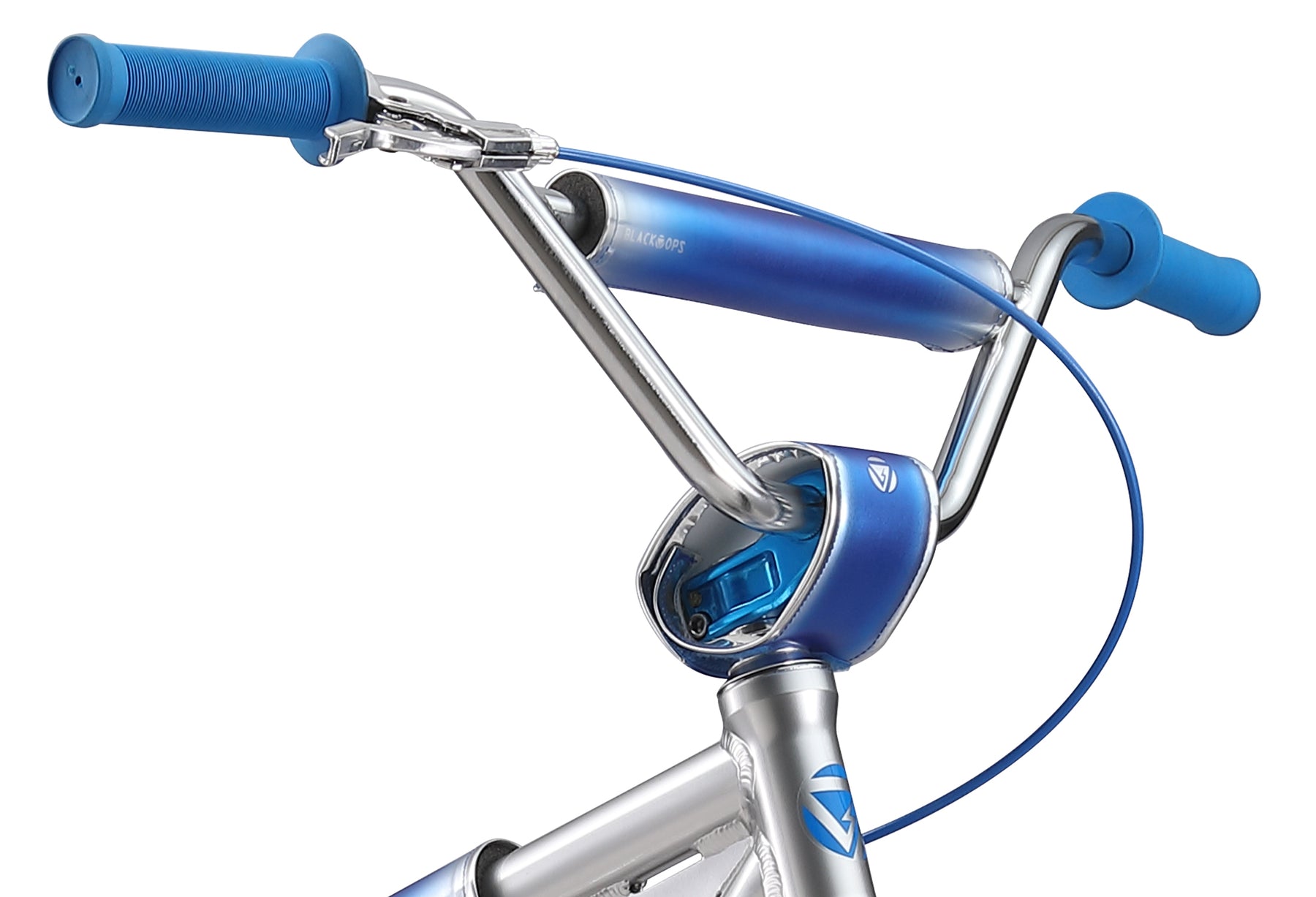

Handlebar
Chromoly, BMX, 30" Wide x 6" Rise x 22.2 Clamp
Stem
Alloy, BMX, Threadless, 28.6 x 50mm x 22.2 Clamp W/4-Bolt Face Plate
Headset
1-1/8" Semi-Integrated, Caged Bearings, 28.6 x 44 x 30mm
Grips
Kraton Rubber, 130mm

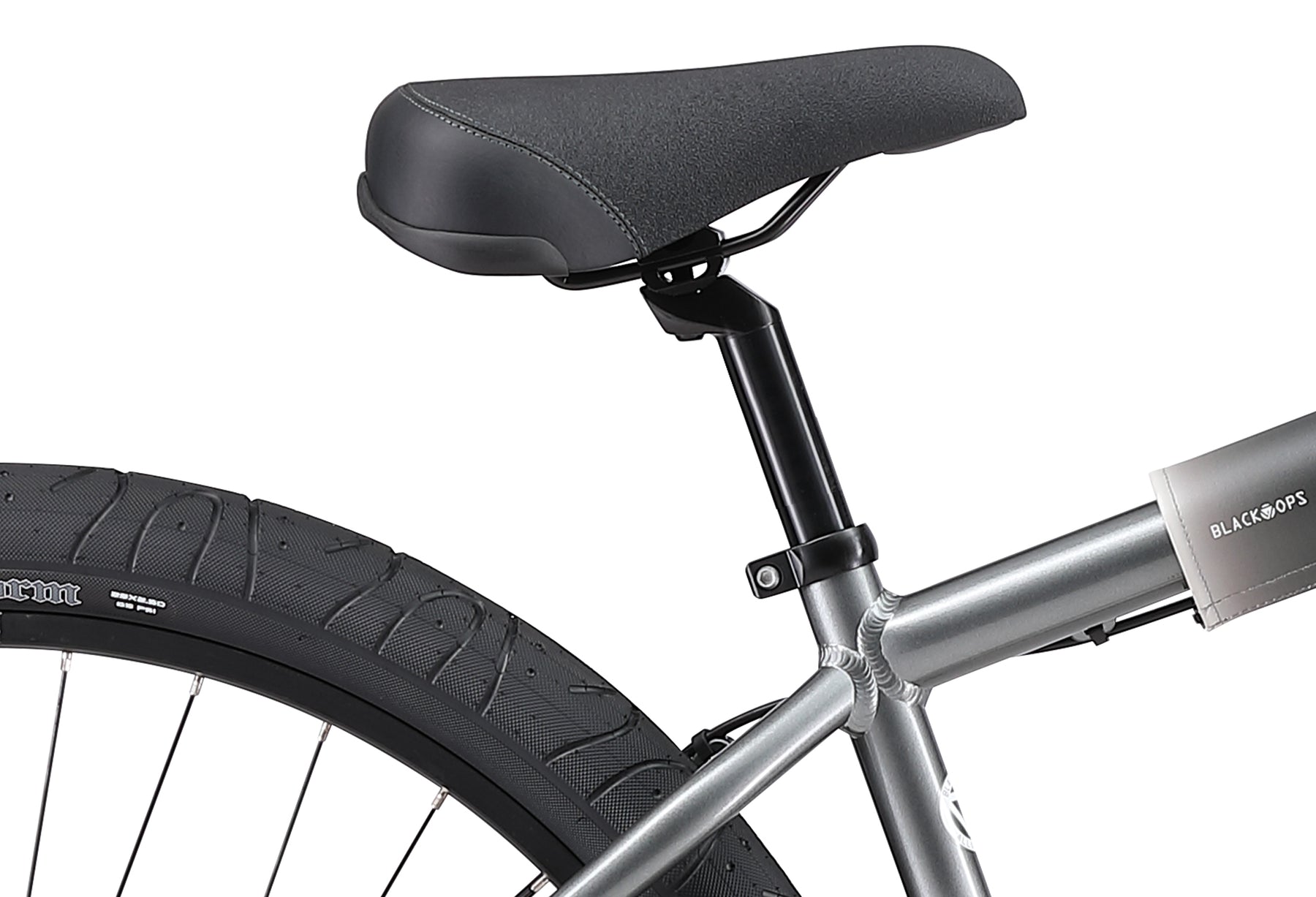

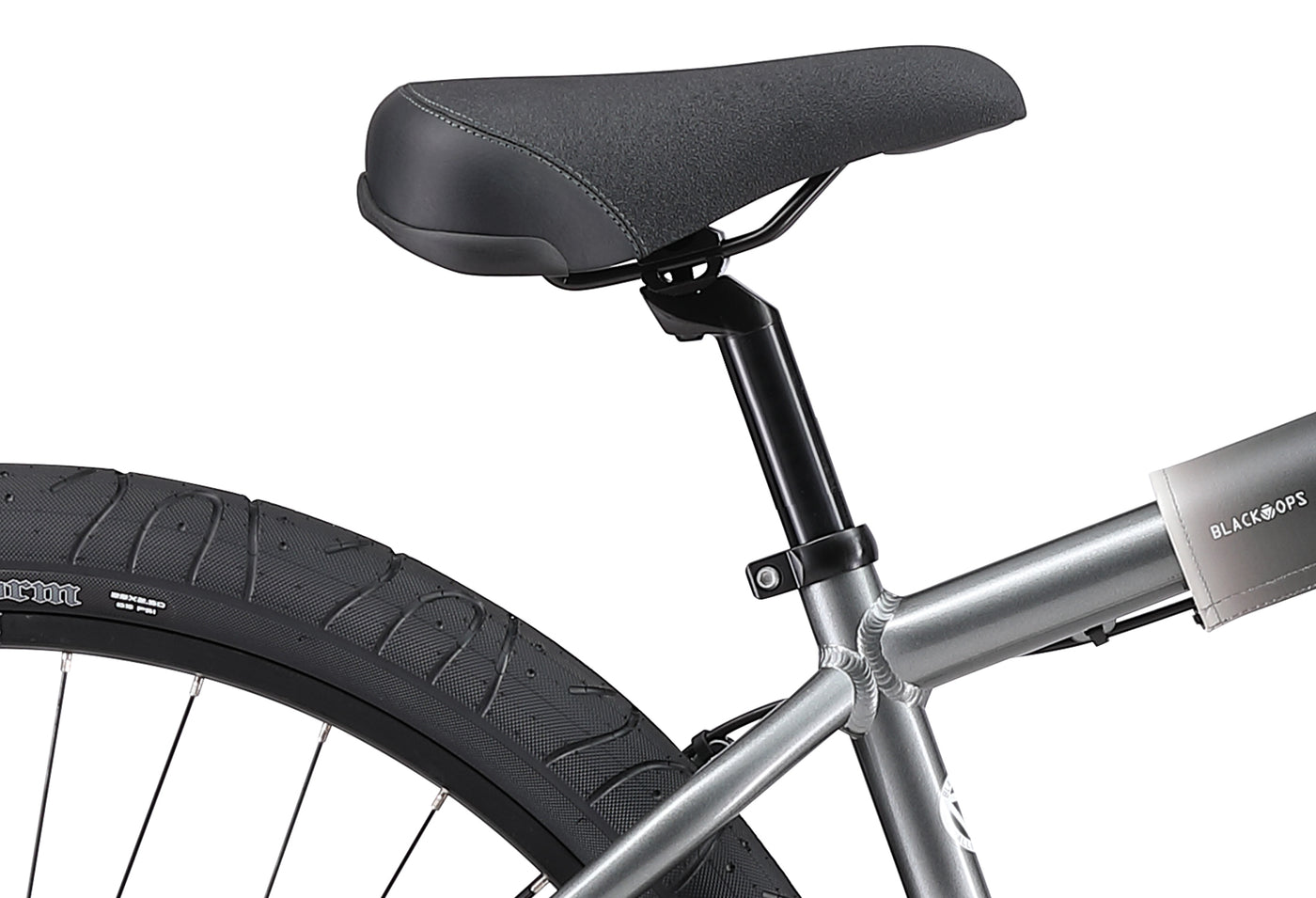

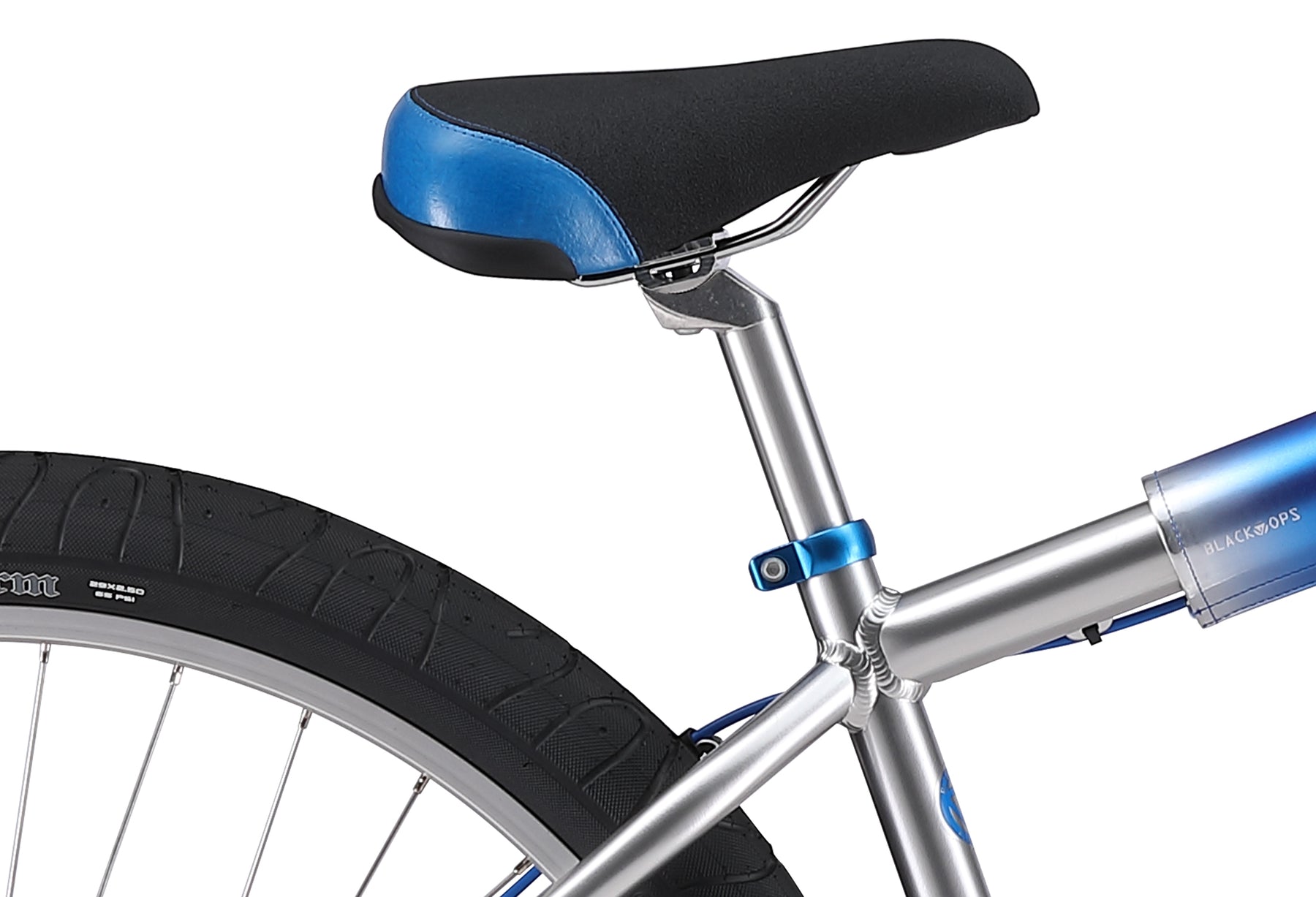

Saddle
Black-Ops Custom BMX, Steel Rails w/Grip Top
Seat Post
Alloy W/Integrated Clamp, 27.2 x 350mm
Seat Clamp
Alloy, 31.8mm I.D., With Bolt
Wheels
Front Wheel
29" Disc, Double-Wall Alloy, Bolt-On
Rear Wheel
29" Disc, Double-Wall Alloy, Bolt-On (For Freewheel)
Front Hub
Alloy, 6-Bolt Disc, 100mm Spacing, Sealed Cartridge Bearings, 3/8" Bolt-On Axle
Rear Hub
Alloy, 6-Bolt Disc, 110mm Spacing, Sealed Cartridge Bearings, 14mm Bolt-On Axle
Spokes
14G Stainless Steel ED Blk with CP Brass Nipples (FD-290 - FND-289 / R-289 / N-12mm)
Rims
29", Double-Wall Alloy, 30 x 24mm, 36H x 14G
Tires
Maxxis Hookworm, 29 x 2.5"
Tubes
29" x 2.5", Schrader Valve
Included Extras
Accessory
Adjustable Chain Tensioner
Accessory
Black Ops 3-Piece Fade Pad Set
Accessory
Rear Axle Pegs, Steel, 38 x 110mm x 14mm
Available Accessories
Front Brake Kit
Front Brake Add-On kit
Weight
Bike Weight
33 Lbs.
Rider Weight Limit
250 Lbs.
Notes
Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.

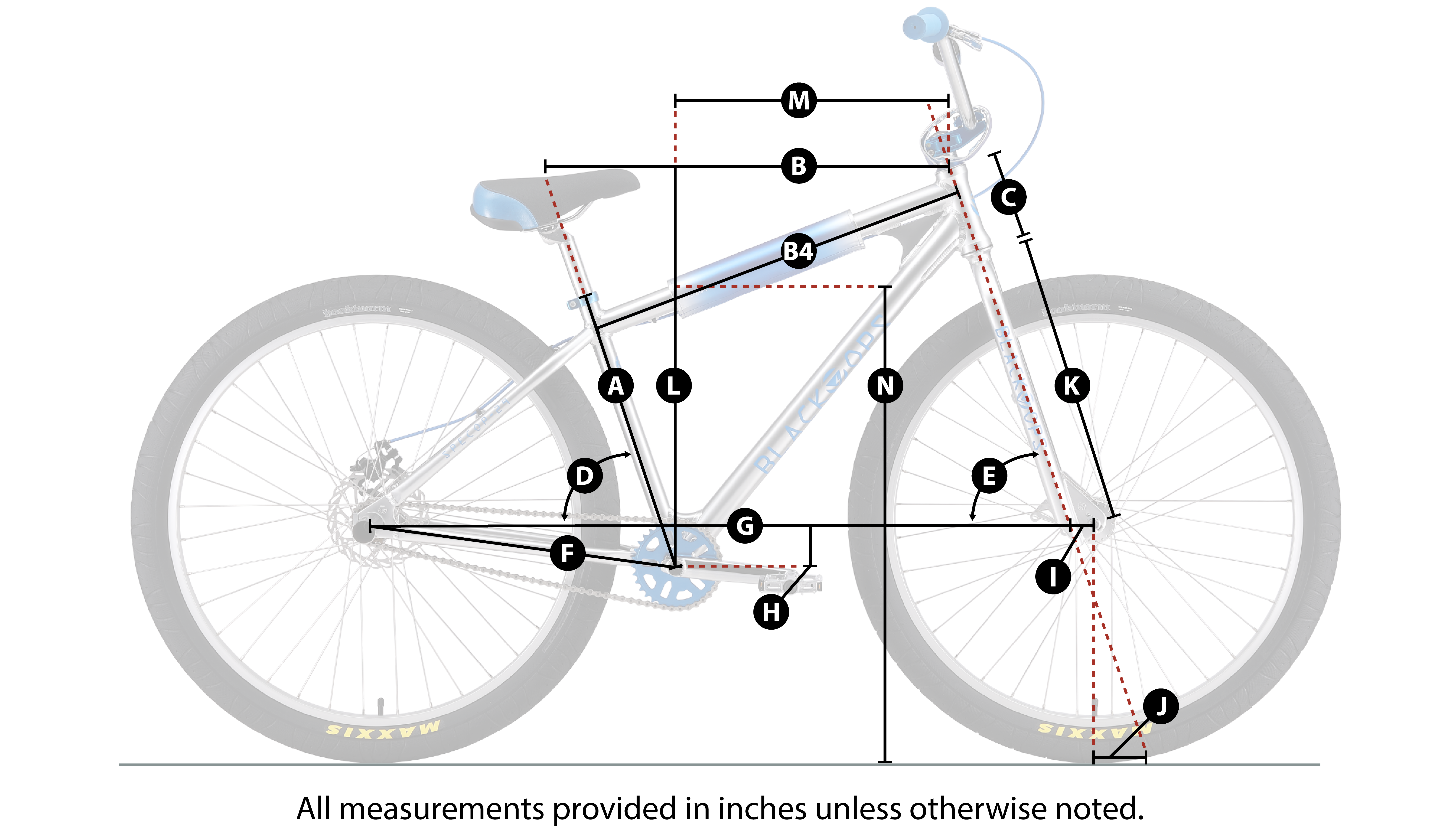

Bike Geometry
| Measurement | Ref | 17" |
|---|---|---|
| Seat Tube, Center To Top | A | 17" |
| Top Tube, Effective | B | 24.4" |
| Top Tube, Actual | B4 | 23.1" |
| Head Tube | C | 4.9" |
| Seat Tube Angle | D | 71° |
| Head Tube Angle | E | 71° |
| Chainstay | F | 18.3" |
| Wheelbase | G | 43.3" |
| Bottom Bracket Drop | H | 2.5" |
| Bottom Bracket To Ground | H1 | 12.3" |
| Fork Offset | I | 1.6" |
| Axle To Crown | K | 17.5" |
| Step-Thru / Standover | N | 29.5" |
| Minimum Saddle To Ground | 32.5" | |
| Minimum Saddle To Pedal | 28" | |
| Maximum Saddle To Pedal | 36" | |
| Suggested Rider Height | 5'4" and up | |
| Wheel Size | 29" | |
| Crank Length | 175 mm | |
| Stem Length | 50 mm | |
| Handlebar Width | 30" Wide / 6" Rise |
