Frameset
Frame
6061 aluminum alloy frame with added reinforcements at critical points
Fork
Heavy-duty steel fork
Wheels
Front Hub
Alloy front hub with sealed cartridge bearings
Rear Hub
Alloy flip/flop rear hub with 14mm axle and sealed cartridge bearings
Rims
24″ x 36h double- wall alloy rims
Spokes
14g stainless steel spokes
Tires
24″ x 2.30 Vee Tire Co. Speedster tires
Drivetrain
Gearing
Single Speed

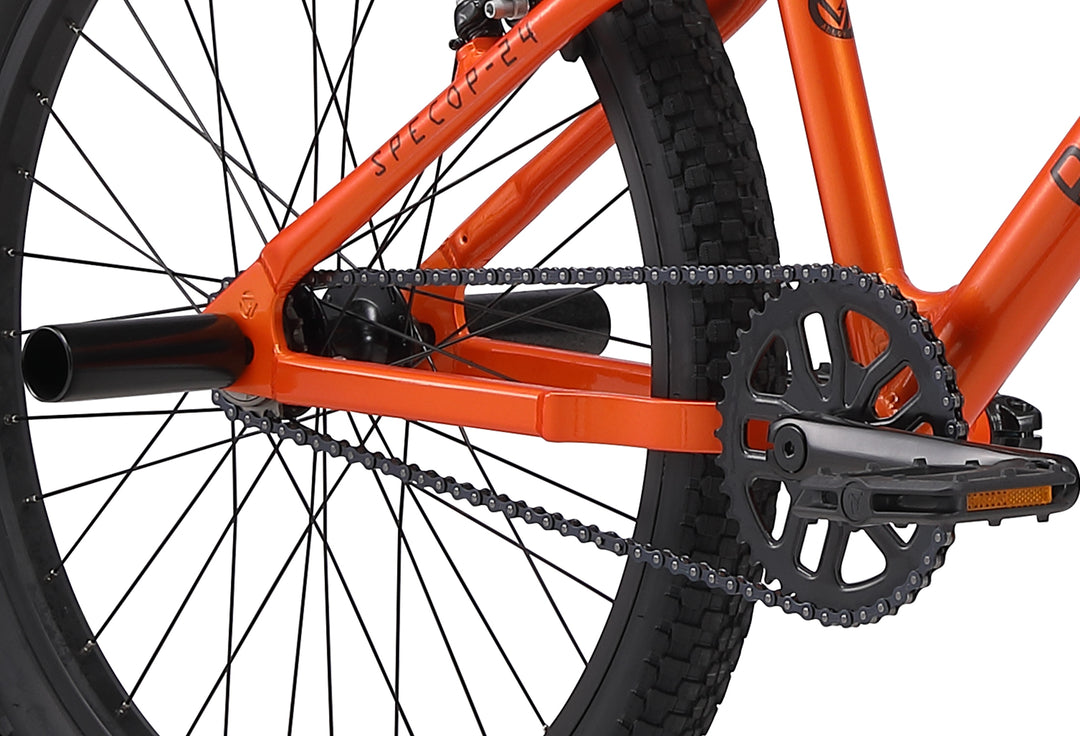

Crankset
3-piece tubular chromoly cranks
Chainring
39T alloy chainring with 17T rear sprocket
BB
8-spline quad bearing sealed cartridge bottom bracket
Chain
KMC S1 1/2″ x 1/8″ 92 link chain
Pedals
Alloy platform pedals
Components

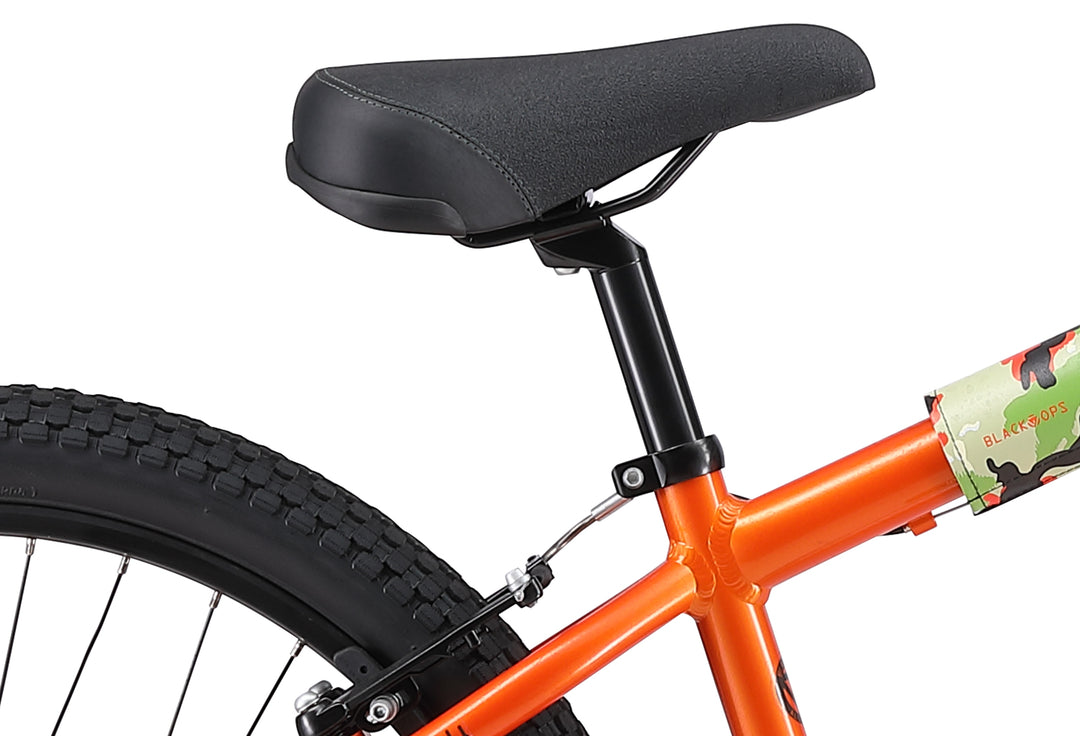

Saddle
BlackOps Mullet Saddle
Seatpost
Alloy Seat Post with integrated clamp

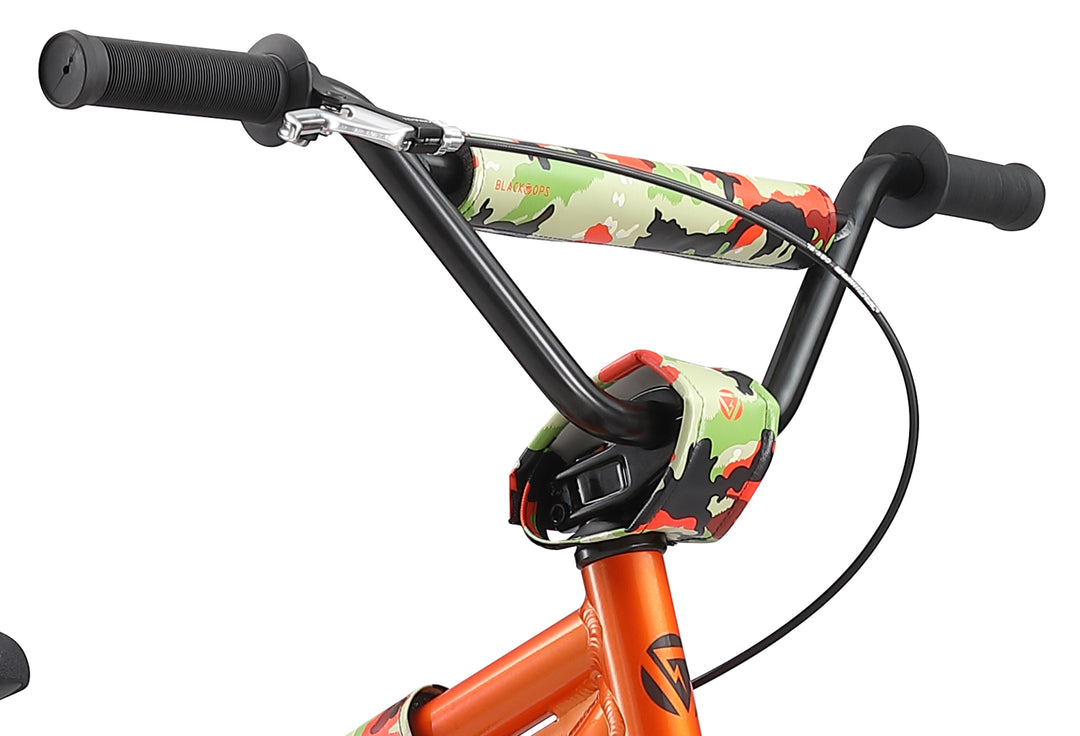

Handlebar
Steel BMX handlebar
Grips
Rubber mushroom style BMX grips
Stem
Alloy 4-Bolt 1-1/8″ threadless stem
Headset
Steel 1-1/8″ threadless headset
Brakes
Brakeset
Rear Tektro V-Brake
Accessories
Pads
Digital camo 3-piece pad set
Pegs
Rear Pegs
Chain Guard
Smoke clear plastic chain guard
WEIGHTS
Bike Weight
30 Lbs
Rider Weight Limit
250 Lbs
| KEY | mm | inch | |
|---|---|---|---|
| Seat Tube Length (BB Center to Top) | A | 318 | 12.5 |
| Top Tube Length (Effective) | B | 571 | 22.5 |
| Chainstay Length | C | 404 | 15.9 |
| BB Drop | D | 20 | 0.8 |
| BB Height (BB Center to Ground) | E | 290 | 11.4 |
| Head Tube Length | F | 125 | 4.9 |
| Head Tube Angle | G | 73.5° | 73.5° |
| Seat Tube Angle | H | 72.0° | 72.0° |
| Wheelbase | I | 996 | 39.2 |
| Fork Offset | J | 40 | 1.6 |
| Standover Height* | K | 630 | 24.8 |
| Frame Stack | L | 0.0 | 0.0 |
| Frame Reach | M | 0.0 | 0.0 |
| Seat Tube to Ground | N | 595 | 23.4 |
| Overall Length | O | 1610 | 63.4 |
| Crank Length | 175 | 6.9 | |
| Handlebar Width | 711 | 28.0 | |
| Stem Length | 50 | 2.0 | |
| Seat Post Length | 300 | 11.8 |
