Product Specifications
Frameset
Frame
6061 Aluminum Tubing, 68mm Euro Bottom Bracket
Fork
1-1/8" High Tensile Steel, Straight Legs

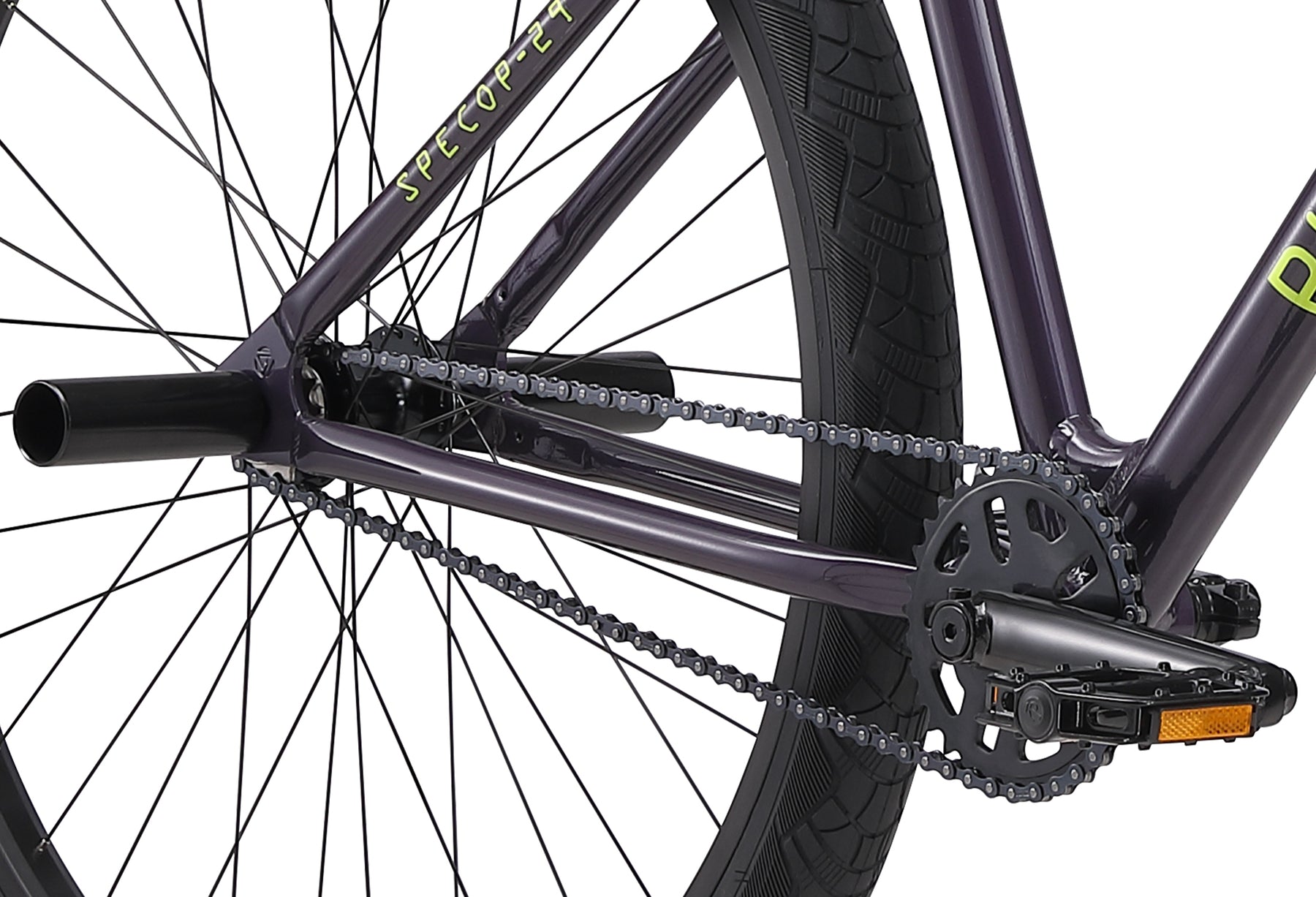

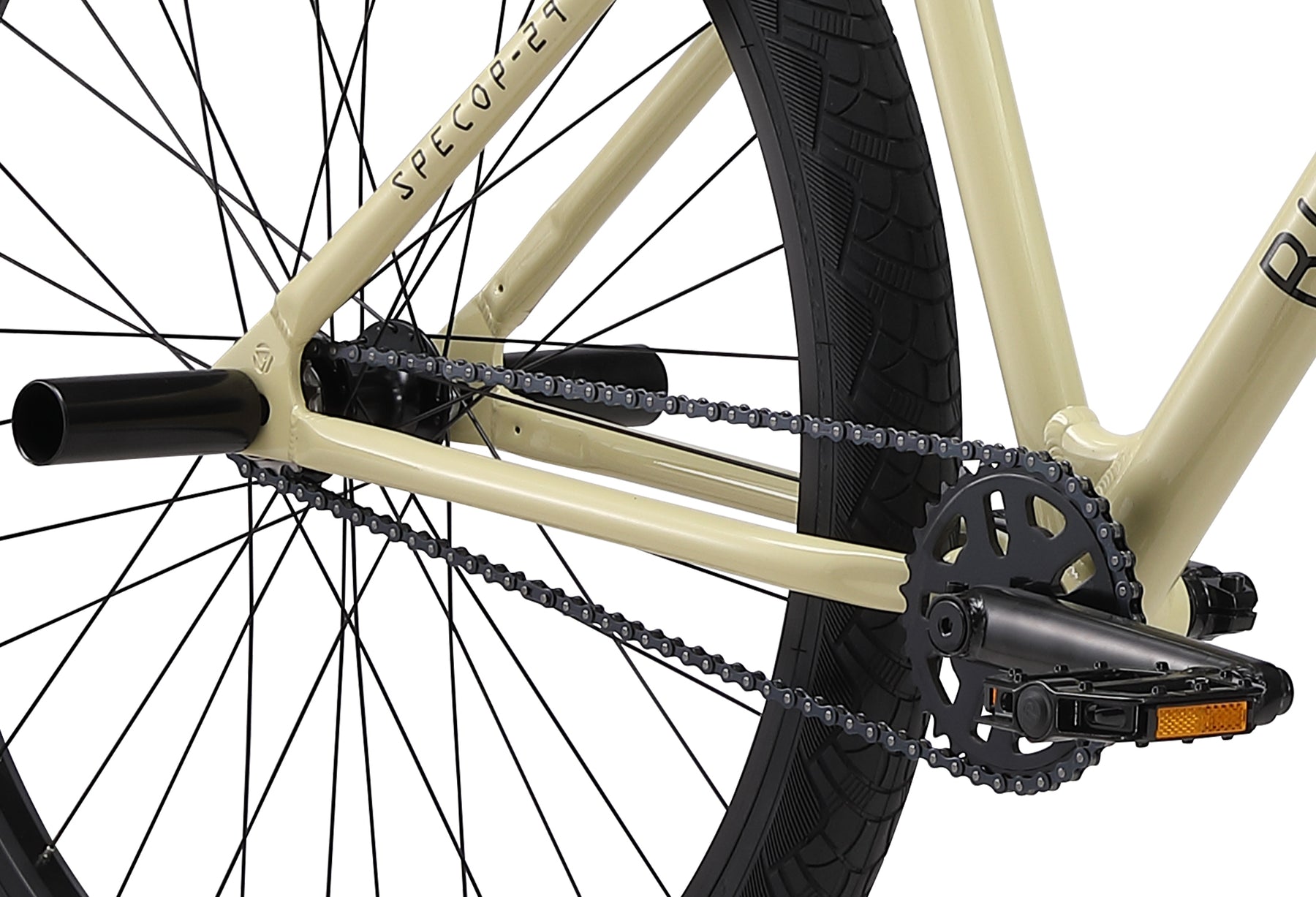

Drivetrain
Crankset
3-Piece Chromoly, 175mm
Chainring
Alloy, 33T x 1/2" x 1/8"
Bottom Bracket
Sealed Cartridge, 8T Splined, w/Quad Bearings
Freewheel
15T x 1/2" x 1/8"
Chain
K.M.C. S1, 1/2" x 1/8"
Pedals
Alloy W/Chromoly Spindle, 9/16"
Brakes
Rear Brake
Alloy, Tektro Linear Pull
Brake Lever
Alloy, Tektro Linear Pull
Components

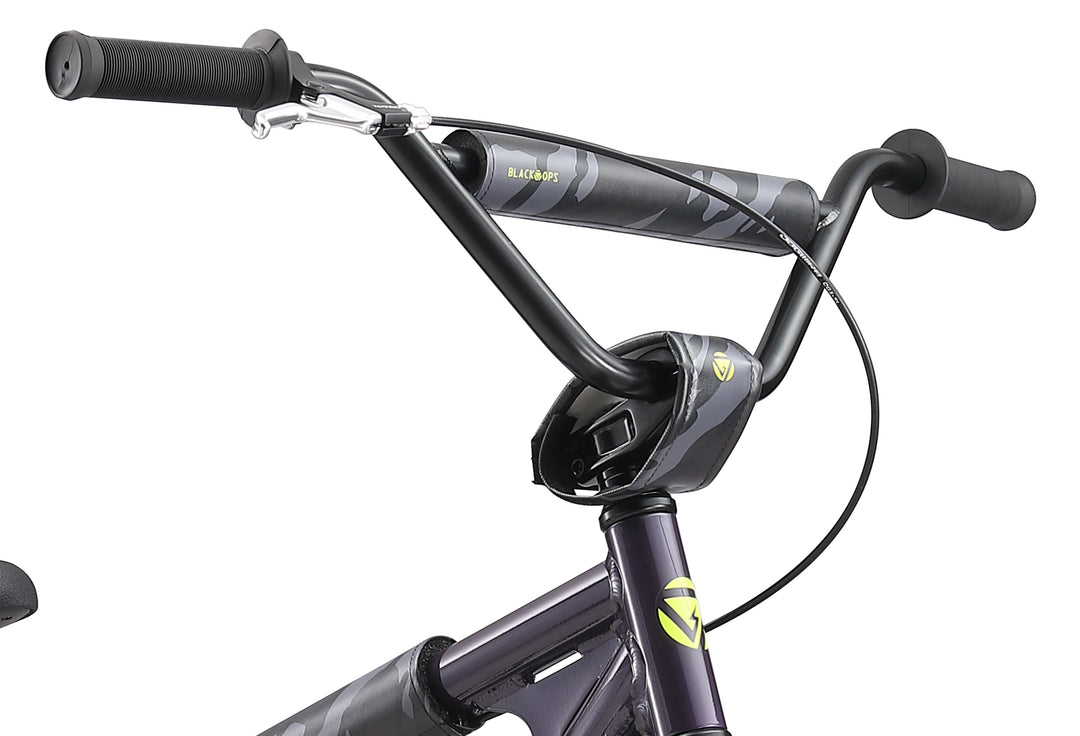

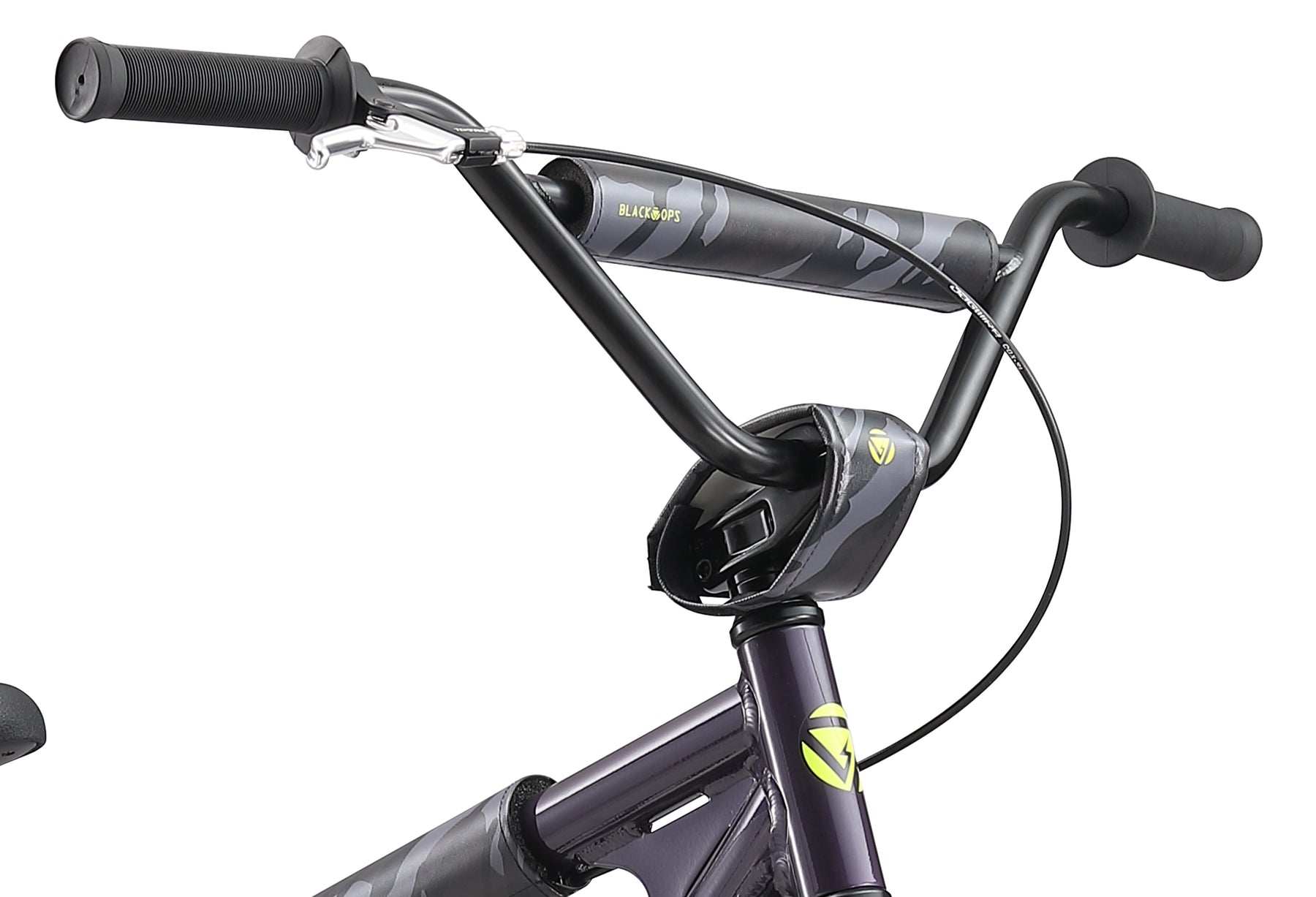

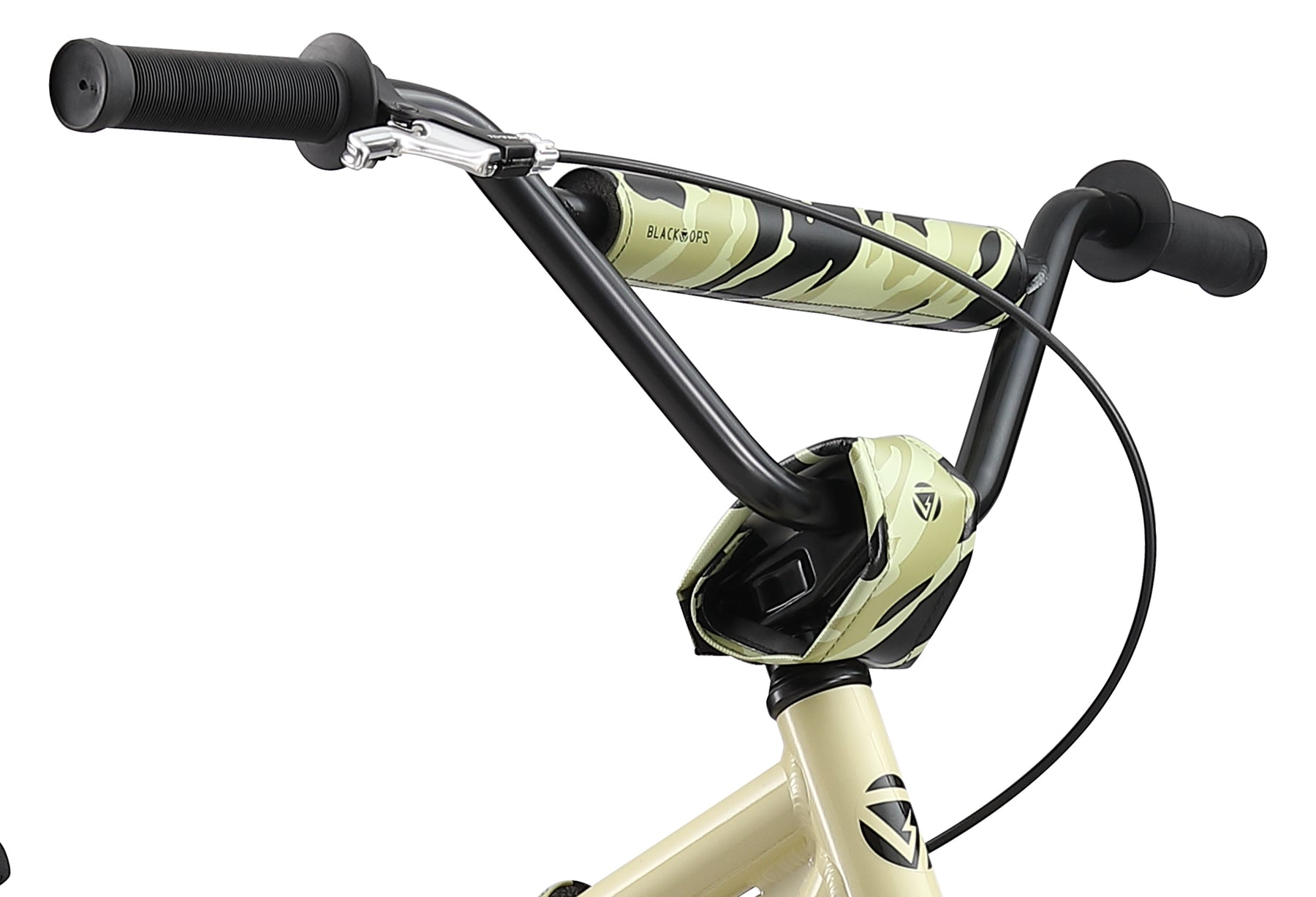

Handlebar
Steel, BMX, 30" Wide x 6" Rise x 22.2 Clamp
Stem
Alloy, BMX, Threadless, 28.6 x 50mm x 22.2 Clamp W/4-Bolt Face Plate
Headset
Steel, Caged Bearings, Sealed, 25.4 x 34 x 30mm
Grips
Kraton Rubber, 130mm

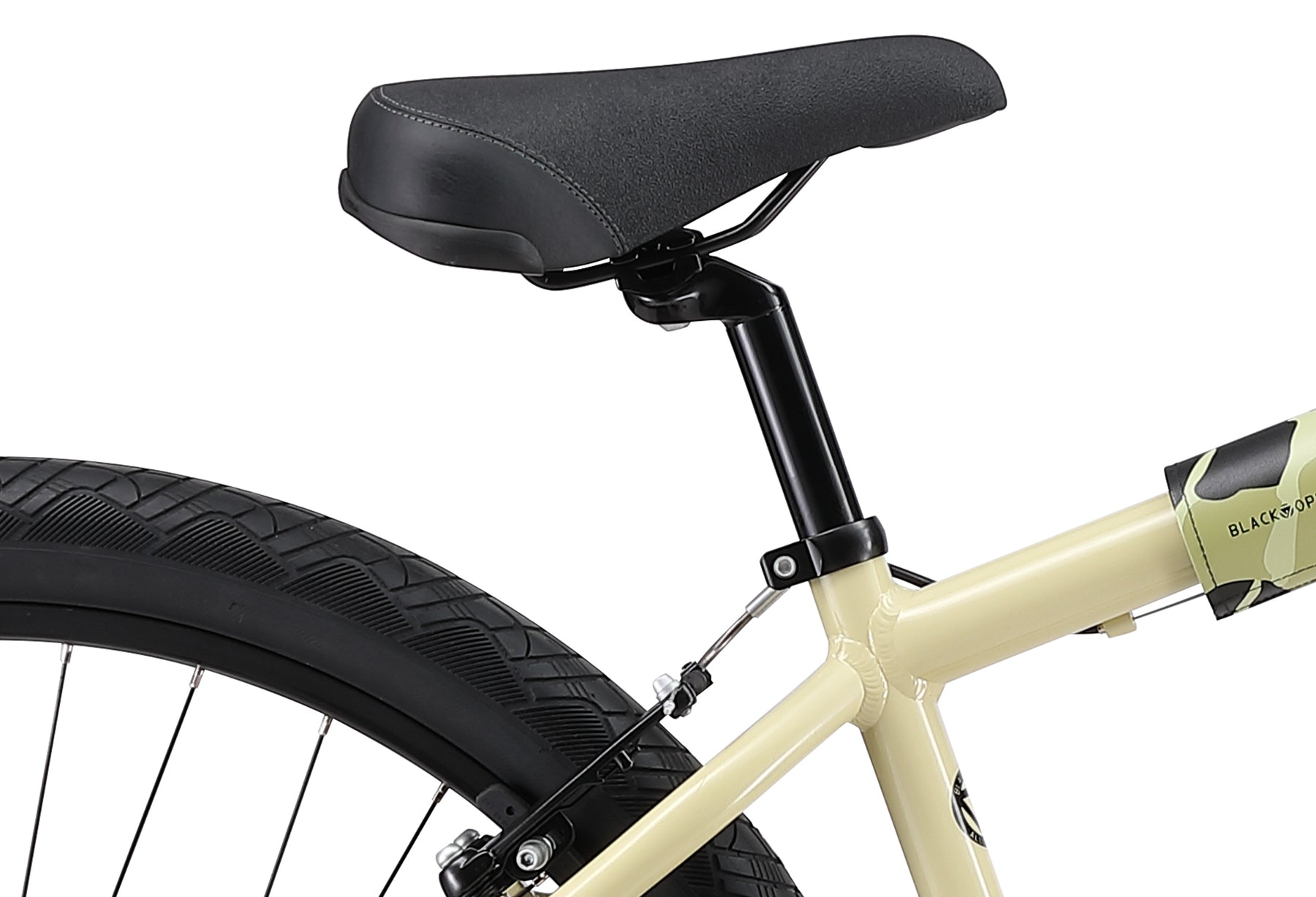

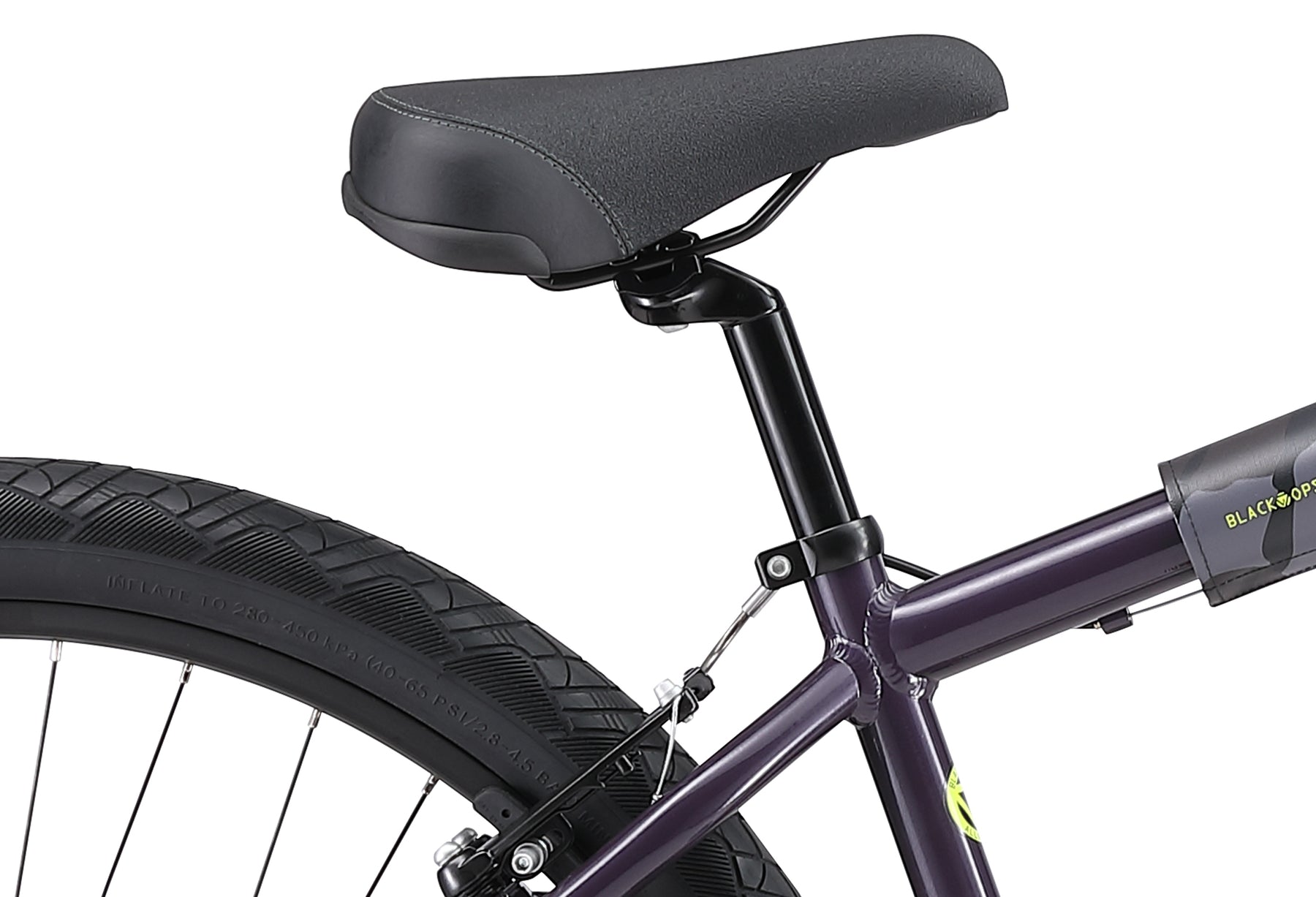

Saddle
Black-Ops Custom BMX, Steel Rails w/Grip Top
Seat Post
Alloy W/Integrated Clamp, 27.2 x 350mm
Seat Clamp
Alloy, 31.8mm I.D., With Bolt
Wheels
Front Wheel
29", Double-Wall Alloy, 36H, Bolt-On
Rear Wheel
29", Double-Wall Alloy, 36H, Bolt-On (Flip-Flop)
Front Hub
Alloy, 36H, 100mm Spacing, Sealed Cartridge Bearings, 3/8" Bolt-On Axle
Rear Hub
Alloy, 36H, 110mm Spacing, Sealed Cartridge Bearings, 14mm Bolt-On Axle
Spokes
14G Stainless Steel ED Blk with brass nipples (F-291 / R-290 / N-12mm)
Rims
29", Double-Wall Alloy, 30 x 24mm, 36H x 14G
Tires
29 x 2.35", Black Wall
Tubes
29" x 2.35", Schrader Valve
Included Extras
Accessory
3-Piece Pad Set, SpecOp Camo
Weight
Bike Weight
30.5 Lbs.
Rider Weight Limit
250 Lbs.
Notes
Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
Bike Geometry
| Measurement | Ref | 17" |
|---|---|---|
| Seat Tube, Center To Top | A | 17" |
| Top Tube, Effective | B | 24.4" |
| Top Tube, Actual | B4 | 23.1" |
| Head Tube | C | 4.9" |
| Seat Tube Angle | D | 71° |
| Head Tube Angle | E | 71° |
| Chainstay | F | 18.5" |
| Wheelbase | G | 43.5" |
| Bottom Bracket Drop | H | 2.5" |
| Bottom Bracket To Ground | H1 | 12.3" |
| Fork Offset | I | 1.6" |
| Axle To Crown | K | 17.5" |
| Step-Thru / Standover | N | 29.5" |
| Minimum Saddle To Ground | 32.5" | |
| Minimum Saddle To Pedal | 28" | |
| Maximum Saddle To Pedal | 36" | |
| Suggested Rider Height | 5'4" and up | |
| Wheel Size | 29" | |
| Crank Length | 175 mm | |
| Stem Length | 50 mm | |
| Handlebar Width | 30" Wide / 6" Rise |
